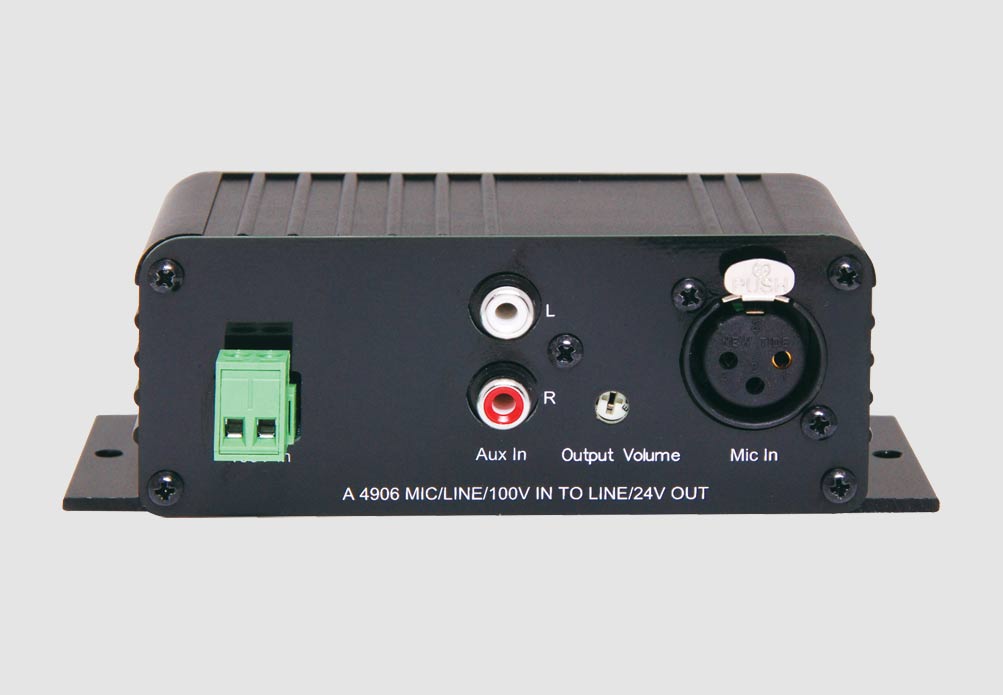

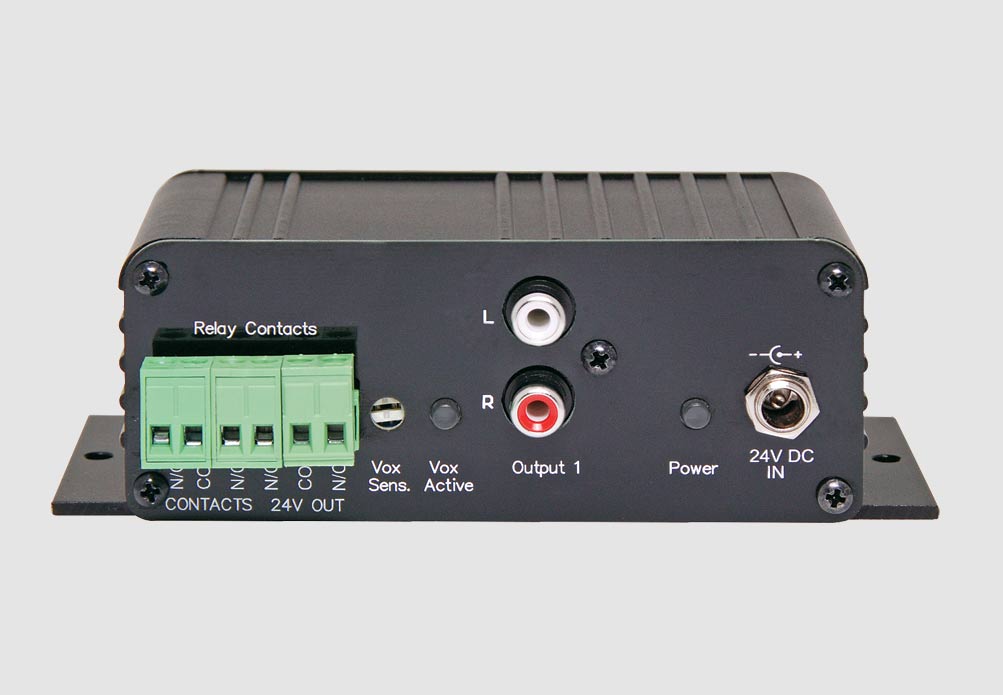

A 4906 • Mic/Line/100V Input to Line Level Converter

The A 4906 is a versatile unit which accepts either a line level signal, balanced microphone signal or 100V input signal. The output signal is a line level signal suitable for feeding into an amplifier. Phantom power is available to the microphone input, and a VOX circuit, with adjustable sensitivity is used to trigger output relays. The unit is powered from a 24V DC source.

This unit does not include a power supply. Requires 24V DC @ 500mA.

Key Features:

• Mic, line or 100V input level.
• Line level output.
• Phantom power to Mic Input (12V DC).
• Controls for master volume and VOX sensitivity.
• VOX operated relay outputs.
• 24VDC switched output. (120mA Max).
• 24VDC operation via 2.1mm DC power jack.
• Dimensions 133W x 30H x 80D mm.

Developed, designed & assembled in Australia.
Since 1974 Redback PA products have been manufactured in Perth, Western Australia by Altronics. With over 50 years experience in the commercial audio industry, we offer consultants, installers and end users reliable products of high build quality with local product support.

Backed by an industry leading 10 Year Manufacturer Warranty.
Our Redback products have a long tried and tested history of bulletproof reliability. Altronics offers a 10 Year Warranty on all Australian Made Redback products. Our local in-house service department has all the know how to answer technical queries and provide timely service.
